Node operation and configuration

Start Node

Run docker-compose up.

$ docker-compose up -d

The docker ps command shows the list of running docker containers.

$ docker ps
CONTAINER ID   IMAGE                                                          COMMAND                CREATED              STATUS                          PORTS                                                                 NAMES
0de99e33cdc9     iconloop/prep-node:1910261021xc97f33    "/src/entrypoint.sh"      2 minutes ago        Up 2 minutes(healthy)    0.0.0.0:7100->7100/tcp, 0.0.0.0:9000->9000/tcp prep_prep_1
Corresponding columns,

| Column       | Description                                                  |
| :----------- | :----------------------------------------------------------- |
| CONTAINER ID | Container  ID                                                |
| IMAGE        | P-Rep Node's  image name                                     |
| COMMAND      | The script will be executed whenever a P-Rep Node container is run |
| STATUS       | Healthcheck status. One of "starting" , "healthy", "unhealthy" or "none" |
| PORTS        | Exposed ports on the running container                       |
| NAMES        | Container name                                               |


You can read the container booting log from the log folder.
$ tail -f data/PREP-MainNet/log/booting_20190419.log
[2019-10-28 10:43:05.204] Your IP: xx.xx.xx.xx
[2019-10-28 10:43:05.209] RPC_PORT: 9000 / RPC_WORKER: 3
[2019-10-28 10:43:05.214] DEFAULT_PATH=/data/mainnet in Docker Container
[2019-10-28 10:43:05.219] DEFAULT_LOG_PATH=/data/mainnet/log
[2019-10-28 10:43:05.224] DEFAULT_STORAGE_PATH=/data/mainnet/.storage
[2019-10-28 10:43:05.229] scoreRootPath=/data/mainnet/.score_data/score
[2019-10-28 10:43:05.234] stateDbRootPath=/data/mainnet/.score_data/db
[2019-10-28 10:43:05.239] Time synchronization with NTP / NTP SERVER: time.google.com
[2019-10-28 10:43:12.022] P-REP package version info - _1910261021xc97f33
[2019-10-28 10:43:12.853] iconcommons             1.1.2
iconrpcserver           1.4.5
iconsdk                 1.2.0
iconservice             1.5.15
loopchain               2.4.16

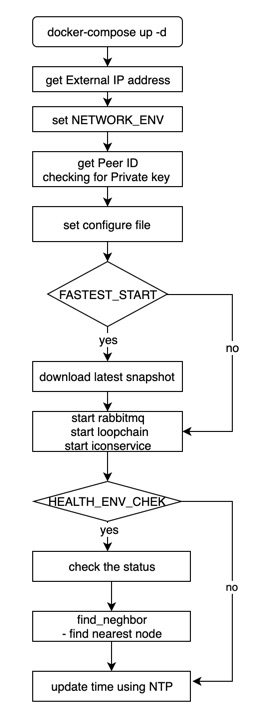

Entrypoint.sh Diagram



Stop Node

$ docker-compose down



View Node Status

Check the current state and information of the prep-node


# API Checks The current state of a node can be confirmed by `/api/v1/status/peer` and `/api/v1/avail/peer` API functions. The response data are the same, but HTTP response codes are different.
$ curl localhost:9000/api/v1/status/peer

{
  "made_block_count": 0,
  "leader_made_block_count": 7,
  "status": "Service is online: 0",
  "state": "Watch",
  "service_available": true,
  "peer_type": "0",
  "audience_count": "0",
  "consensus": "siever",
  "peer_id": "hx72bff0f887ef183bde1391dc61375f096e75c74a",
  "block_height": 10106994,
  "round": 0,
  "epoch_height": 10106995,
  "unconfirmed_block_height": -1,
  "total_tx": 72003516,
  "unconfirmed_tx": 0,
  "peer_target": "xxx.xxx.xxx.xxx:7100",
  "leader_complaint": 1,
  "peer_count": 24,
  "leader": "hxc9e36a98a3fca0b636eb822ff5a96db658e4bb88",
  "epoch_leader": "hxc9e36a98a3fca0b636eb822ff5a96db658e4bb88",
  "versions": {
    "loopchain": "2.4.16",
    "iconservice": "1.5.15",
    "iconrpcserver": "1.4.5",
    "iconcommons": "1.1.2",
    "earlgrey": "0.0.4"
  },
  "mq": {
    "peer": {
      "message_count": 0
    },
    "channel": {
      "message_count": 0
    },
    "score": {
      "message_count": 0
    }
  }
}
  • /api/v1/avail/peer returns HTTP response 503 when the service is unavailable

This is useful when performing a health check based on the HTTP response code of the load balancer.

#Return HTTP 503 Service Unavailable

state : InitComponents, EvaluateNetwork, BlockSync, SubscribeNetwork
  • /api/v1/status/peer returns 200 OK at BlockSync
$ curl -i localhost:9000/api/v1/status/peer
HTTP/1.1 200 OK
Connection: close
Access-Control-Allow-Origin: *
Content-Length: 573
Content-Type: application/json

{
  "made_block_count": 0,
  "leader_made_block_count": 7,
  "status": "Service is online: 0",
  "state": "Watch",
  "service_available": true,
  "peer_type": "0",
  "audience_count": "0",
  "consensus": "siever",
  "peer_id": "hx72bff0f887ef183bde1391dc61375f096e75c74a",
  "block_height": 10106994,
  "round": 0,
  "epoch_height": 10106995,
  "unconfirmed_block_height": -1,
  "total_tx": 72003516,
  "unconfirmed_tx": 0,
  "peer_target": "xxx.xxx.xxx.xxx:7100",
  "leader_complaint": 1,
  "peer_count": 24,
  "leader": "hxc9e36a98a3fca0b636eb822ff5a96db658e4bb88",
  "epoch_leader": "hxc9e36a98a3fca0b636eb822ff5a96db658e4bb88",
  "versions": {
    "loopchain": "2.4.16",
    "iconservice": "1.5.15",
    "iconrpcserver": "1.4.5",
    "iconcommons": "1.1.2",
    "earlgrey": "0.0.4"
  },
  "mq": {
    "peer": {
      "message_count": 0
    },
    "channel": {
      "message_count": 0
    },
    "score": {
      "message_count": 0
    }
  }
}
  • /api/v1/avail/peer returns 503 OK at BlockSync
$ curl -i localhost:9000/api/v1/avail/peer
HTTP/1.1 503 Service Unavailable
Connection: close
Access-Control-Allow-Origin: *
Content-Length: 573
Content-Type: application/json

{
  "made_block_count": 0,
  "leader_made_block_count": 7,
  "status": "Service is online: 0",
  "state": "Watch",
  "service_available": true,
  "peer_type": "0",
  "audience_count": "0",
  "consensus": "siever",
  "peer_id": "hx72bff0f887ef183bde1391dc61375f096e75c74a",
  "block_height": 10106994,
  "round": 0,
  "epoch_height": 10106995,
  "unconfirmed_block_height": -1,
  "total_tx": 72003516,
  "unconfirmed_tx": 0,
  "peer_target": "xxx.xxx.xxx.xxx:7100",
  "leader_complaint": 1,
  "peer_count": 24,
  "leader": "hxc9e36a98a3fca0b636eb822ff5a96db658e4bb88",
  "epoch_leader": "hxc9e36a98a3fca0b636eb822ff5a96db658e4bb88",
  "versions": {
    "loopchain": "2.4.16",
    "iconservice": "1.5.15",
    "iconrpcserver": "1.4.5",
    "iconcommons": "1.1.2",
    "earlgrey": "0.0.4"
  },
  "mq": {
    "peer": {
      "message_count": 0
    },
    "channel": {
      "message_count": 0
    },
    "score": {
      "message_count": 0
    }
  }
}

# Node Status Detail |value name|Description | Reason or allowed value| |------|------|------| |made_block_count|number of block generated by node| Reset when node became a leader after a rotation or reorerated.| |status| service on / off status| "Service is online: 1" : Working (leader status)
"Service is online: 0" : Working (not a leader status)
"Service is offline: block height sync" : block sync condition
"Service is offline: mq down" ": channel mq issue| |state|node condition|detailed information (display at bottom)| |service_available|service condition| [ true / false ]| |peer_type|classify leader node and verifying node| "0" : verifying node
"1" : leader node| |audience_count| `DEPRECATION`, It will be remove|| |consensus | consensus algorithm| "siever" : current consensus algorithm
"LFT" : consensus algorithm that will adapt in the future| |peer_id| unique address of node|40 digit HEX string| |block_height|Current block height of node| |round| number of counts for current block consensus process| The count increases by one when leader node fails to process transaction and leader complaint is occured or consensus is failed. The count reset when block generation is complete| |epoch_height|block heights of processing block. In case of citizen nodes, their block heights stop at SubscribeNetwork block heights because they don’t participate in consensus.| |unconfirmed_block_height| block heights of unprocessed block| same as epoch_height| |total_tx| Total number of tx until current block|| | unconfirmed_tx| number of unprocessed tx that hold by queue
if it holds by leader more than one minute leader complaint will occur| |peer_target| IP address and port of node| "IP:PORT"| |leader_complaint |`DEPRECATION`, It will be remove || |peer_count|total number of nodes in blockchain network|| |leader| Unique address of a leader node| 40 digit HEX string| |epoch_leader| Unique address of a leader node in consensus process| 40 digit HEX string| |mq.peer.message_count| Accumulated number of messages in pier MQ| Presents ‘-1’ when an error occurs and details can be found in "error"| |mq.channel.message_count| Accumulated number of messages in channel MQ| Presents ‘-1’ when an error occurs and details can be found in "error"| |mq.score.message_count| Accumulated number of messages in SCORE MQ| Presents ‘-1’ when an error occurs and details can be found in "error"|

State Detail

State ValueDescription
InitComponentsChannel Service initial state
ConsensusLoopchain Consensus begins. Convert to BlockHeightSync automatically
BlockHeightSyncBlock height Sync state begins. Convert to EvaluateNetwork automatically
EvaluateNetworkEvaluate the BlockSync state by checking the network status
BlockSyncBlock Sync loop.
SubscribeNetworkDetermine the type depending on the node type. A citizen node requests the block generation message to a parent node.
WatchCitizen node default state. Relay transaction and sync the blocks created by a parent node
VoteStatus of validating and voting blocks created by the leader
LeaderComplainStatus of requesting leader complain for current leader and wait for complain
BlockGenerateStatus of leader creating a block
GracefulShutdownEnd Process



Docker Environment Variables

If you want to change the TimeZone, open docker-compose.yml in a text editor and add the following content:

version: "3"
services:
  prep-node:
     image: "iconloop/prep-node:1910261021xc97f33"
     container_name: "prep-mainnet"
     network_mode: host
     restart: "always"
     environment:
        NETWORK_ENV: "mainnet"
        SWITCH_BH_VERSION3: "10324749"
        CERT_PATH: "/cert"
        LOOPCHAIN_LOG_LEVEL: "DEBUG"
        ICON_LOG_LEVEL: "DEBUG"
        FASTEST_START: "yes" # Restore from lastest snapshot DB
        PRIVATE_KEY_FILENAME: "{YOUR_KEYSTORE or YOUR_CERTKEY FILENAME}" # only file name
        PRIVATE_PASSWORD: "{YOUR_KEY_PASSWORD}"
        TZ: "America/Los_Angeles" # Added content to change the TimeZone
     cap_add:
        - SYS_TIME
     volumes:
        - ./data:/data # mount a data volumes
        - ./cert:/cert # Automatically generate cert key files here
     ports:
        - 9000:9000
        - 7100:7100

The P-Rep Node image supports the following environment variables:

Environment variableDescriptionDefault valueAllowed value
IPADDRSetting the IP address$EXT_IPADDR
LOCAL_TESTfalsefalse
TZSetting the TimeZone EnvironmentAsia/SeoulList of TZ name
NETWORK_ENVNetwork Environment namePREP-TestNetmainnet, PREP-TestNet
SERVICEService Namedefault
SERVICE_APISERVICE_API URIhttps://${SERVICE}.net.solidwallet.io/api/v3URI
ENDPOINT_URLENDPOINT API URIhttps://${SERVICE}.net.solidwallet.ioURI
NTP_SERVERNTP SERVER ADDRESStime.google.com
NTP_REFRESH_TIMENTP refresh time21600
FIND_NEIGHBORFind fastest neighborhood PRrepfalse
DEFAULT_PATHSetting the Default Root PATH/data/${NETWORK_ENV}
DEFAULT_LOG_PATHSetting the logging path${DEFAULT_PATH}/log
DEFAULT_STORAGE_PATHblock DB will be stored${DEFAULT_PATH}/.storage
USE_NATif you want to use NAT Networkno
NETWORK_NAME
VIEW_CONFIGfor check deployment statefalseboolean (true/false)
USE_MQ_ADMINEnable RabbitMQ management Web interface.The management UI can be accessed using a Web browser at http://{node-hostname}:15672/falseboolean (true/false)
MQ_ADMINRabbitMQ management usernameadmin
MQ_PASSWORDRabbitMQ management passwordiamicon
LOOPCHAIN_LOG_LEVELloopchain log levelINFODEBUG, INFO, WARNING, ERROR
ICON_LOG_LEVELiconservice log levelINFODEBUG, INFO, WARNING, ERROR
LOG_OUTPUT_TYPEloopchain's output log typefilefile, console
outputTypeiconservice's output log type$LOG_OUTPUT_TYPEfile, console
CONF_PATHSetting the configure file path/${APP_DIR}/conf
CERT_PATHSetting the certificate key file path/${APP_DIR}/cert
REDIRECT_PROTOCOLhttphttp
SUBSCRIBE_USE_HTTPSfalsefalse
ICON_NIDSetting the ICON Network ID number0x50
ALLOW_MAKE_EMPTY_BLOCKfalsefalse
score_feetruetrue
score_auditfalsefalse
scoreRootPath${DEFAULT_PATH}/.score_data/score${DEFAULT_PATH}/.score_data/score
stateDbRootPath${DEFAULT_PATH}/.score_data/db${DEFAULT_PATH}/.score_data/db
iissDbRootPath${DEFAULT_PATH}/.iissDb${DEFAULT_PATH}/.iissDb
CHANNEL_BUILTINboolean (true/false)true
PEER_NAMEunameuname
PUBLIC_PATHpublic cert key location${CERT_PATH}/${IPADDR}_public.der
PRIVATE_PATHprivate cert key location${CERT_PATH}/${IPADDR}_private.der
PRIVATE_PASSWORDprivate cert key passwordtest
LOAD_PEERS_FROM_IISStruetrue
CHANNEL_MANAGE_DATA_PATH${CONF_PATH}/channel_manange_data.json${CONF_PATH}/channel_manange_data.json
CONFIG_API_SERVERhttps://download.solidwallet.iohttps://download.solidwallet.io
GENESIS_DATA_PATH${CONF_PATH}/genesis.json${CONF_PATH}/genesis.json
BLOCK_VERSIONS
NEXT_BLOCK_VERSION_HEIGHT
FORCE_RUN_MODESetting the loopchain running parameter e.g. if FORCE_RUN_MODE is
configure_json${CONF_PATH}/configure.json${CONF_PATH}/configure.json
iconservice_json${CONF_PATH}/iconservice.json${CONF_PATH}/iconservice.json
iconrpcserver_json${CONF_PATH}/iconrpcserver.json${CONF_PATH}/iconrpcserver.json
ICON_REVISION44
ROLE_SWITCH_BLOCK_HEIGHT11
mainPRepCount2222
mainAndSubPRepCount100100
decentralizeTrigger0.0020.002
RPC_PORTChoose a RPC service port9000
RPC_WORKERSetting the number of RPC workers3
RPC_GRACEFUL_TIMEOUTrpc graceful timeout0
PRIVATE_KEY_FILENAMEYOUR_KEYSTORE or YOUR_CERTKEY FILENAMEFileName
PRIVATE_PASSWORDYOUR_KEY_PASSWORDString



Troubleshooting


### **Q: How to check if a container is running or not?**

The docker ps command shows the list of running docker containers.

$ docker ps
CONTAINER ID   IMAGE                                                          COMMAND                CREATED              STATUS                          PORTS                                                                 NAMES
0de99e33cdc9     iconloop/prep-node:1910261021xc97f33    "/src/entrypoint.sh"      2 minutes ago        Up 2 minutes(healthy)    0.0.0.0:7100->7100/tcp, 0.0.0.0:9000->9000/tcp prep_prep_1

You should look under the STATUS field to see if the container is up and in healthy state.

Inside the container, there is a healthcheck script running with the following configuration. It will return unhealthy when it fails.

Healthcheck optionvalue
retries4
interval30s
timeout20s
start-period60s

The container can have three states:

  • starting - container just starts
  • healthy - when the health check passes
  • unhealthy - when the health check fails

If the container does not start properly or went down unexpectedly, please check the booting.log. Below is the log messages on success.

$ cat data/PREP-MainNet/log/booting_${DATE}.log

[2019-10-28 10:43:05.204] Your IP: xxx.xxx.xxx.xxx
[2019-10-28 10:43:05.209] RPC_PORT: 9000 / RPC_WORKER: 3
[2019-10-28 10:43:05.214] DEFAULT_PATH=/data/mainnet in Docker Container
[2019-10-28 10:43:05.219] DEFAULT_LOG_PATH=/data/mainnet/log
[2019-10-28 10:43:05.224] DEFAULT_STORAGE_PATH=/data/mainnet/.storage
[2019-10-28 10:43:05.229] scoreRootPath=/data/mainnet/.score_data/score
[2019-10-28 10:43:05.234] stateDbRootPath=/data/mainnet/.score_data/db
[2019-10-28 10:43:05.239] Time synchronization with NTP / NTP SERVER: time.google.com
[2019-10-28 10:43:12.022] P-REP package version info - _1910261021xc97f33
[2019-10-28 10:43:12.853] iconcommons             1.1.2
iconrpcserver           1.4.5
iconsdk                 1.2.0
iconservice             1.5.15
loopchain               2.4.16

### **Q: How to locate errors from logs?**

Error log messages example

Grep the ERROR messages from the log files to find the possible cause of the failure.

$ cat data/PREP-MainNet/log/booting_${DATE}.log | grep ERROR

[2019-08-12 02:08:48.746] [ERROR] Download Failed - http://20.20.1.149:5000/cert/20.20.1.195_public.der status_code=000

[2019-08-12 01:58:46.439] [ERROR] Unauthorized IP address, Please contact our support team

Docker container generates these log files below

booting.log

  • The log file contains the errors that occurred when the docker container starts up.

iconrpcserver.log

  • The log file contains information about the request/response message handling going through the iconrpcserver.

iconservice.log

  • The log file contains the internals of ICON Service

loopchain.channel-txcreator-icon_dex_broadcast.icon_dex.log

  • The log file contains information about TX broadcast from a node to other nodes

loopchain.channel-txcreator.icon_dex.log

  • The log file contains information about the process of confirming TXƒ

loopchain.channel-txreceiver.icon_dex.log

  • The log file contains information about receiving the broadcasted TX from a node.

loopchain.channel.icon_dex.log

  • The log file contains information about internals of loopchain engine

### **Q: How to monitor different resources?**

We recommend the following tools for resource monitoring

  1. Network monitoring - iftop, nethogs, vnstat
  2. CPU/Memory monitoring - top, htop
  3. Disk I/O monitoring - iostat, iotop
  4. Docker monitoring - docker stats, ctop

Updated 6 months ago

Node operation and configuration


Suggested Edits are limited on API Reference Pages

You can only suggest edits to Markdown body content, but not to the API spec.
