How to collect centralized logging

This document is a guideline about How to collect centralized logging on the MainNet.

Intended Audience

We recommend all P-Rep candidates to go through this guideline.

Purpose

This section describes how to use fluentd to collect/ manage/ and analyze logs generated when a node is running.

P-Rep node will create a log file as noted below.
The log file can be used to identify service operation information and cause of failure.

Pre-requisites

We assume that you have previous knowledge and experience in:

  • IT infrastructure management
  • Linux or UNIX system administration
  • Linux server and docker service troubleshooting
  • Docker container

Description of log files in prep-node

service namelog file name
docker container bootingbooting.log
iconrpcservericonrpcserver.log
iconserviceiconservice.log
loopchainloopchain.channel-txcreator-icon_dex_broadcast.icon_dex.log
loopchain.channel-txcreator.icon_dex.log
loopchain.channel-txreceiver.icon_dex.log
loopchain.channel.icon_dex.log

The logs can be managed on the local disk.
However, in order to manage the old log files and the large log files, the log should be kept in a separate space. In addition, multiple nodes may be operated depending on network modeling. It is recommended to collect and analyze logs from the central server rather than accessing the server each time to check the logs of multiple nodes.

Logging architecture

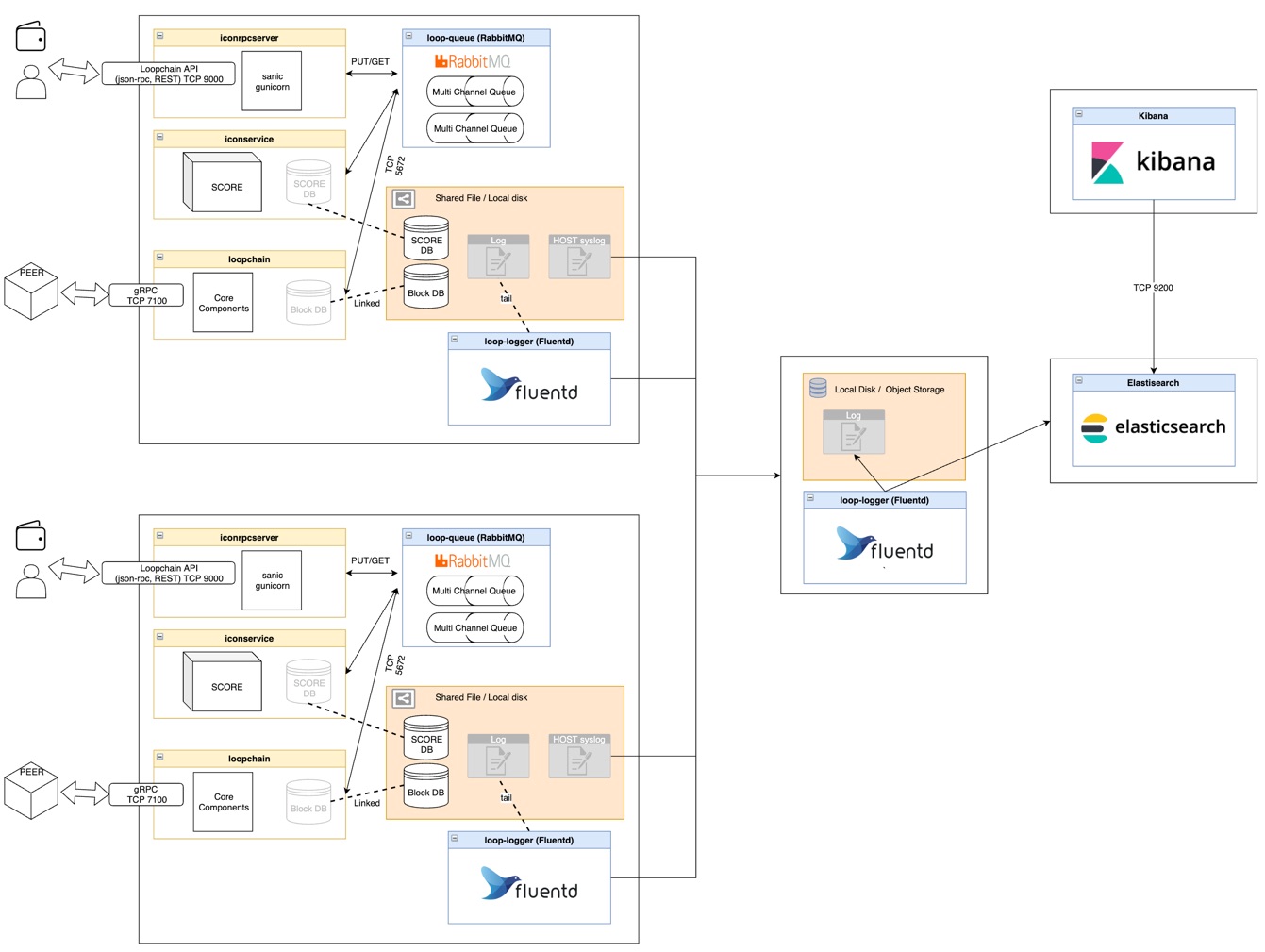

The below diagram shows the architecture of log collection/analysis method using Fluent, Elasticsearch, and Kibana.

Now, let’s look at the guide of how to collect logs using Fluentd.

Fluentd Log Collection Method

What is Fluentd?

Fluentd is an open-source data collection software licensed under Apache 2.0. It is written in a combination of C and Ruby, and supports memory and file-based buffering to prevent data loss between the nodes. It structures all the data formats coming from multiple sources in JSON format. Fluentd has 7 types of plugins: Input, Parser, Filter ,Output, Formatter, Storage, Buffer, and etc.

  • How to Collect Fluentd Agent Logs in Docker

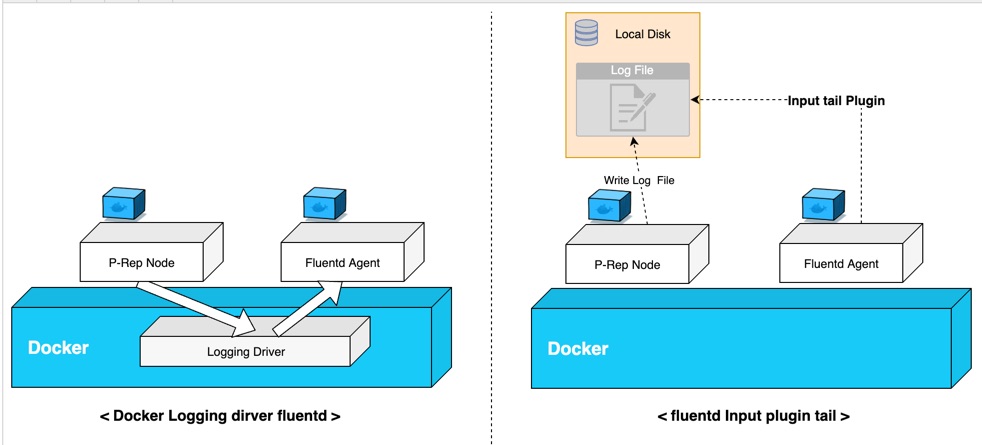

    There are two ways of collecting logs. The first one is to set the docker logging driver to Fluentd. The second way is to collect the logs using the tail of fluentd input plugin. We recommend using the second method, using the input plugin, rather than using the docker logging driver. If you use the docker logging driver, you may experience delays in fluentd containers, or container problems that will affect P-Rep container performance. In the case of using input plugin, there is no connection point between Fluentd container and P-Rep container. So there will be no effect on the performance even if the fluentd problem occurs.

Installation

Prerequisite
  • Install Docker and Check P-Rep Docker Container Environment Variables

You need to check the value of the ICON log setting in the Docker Container Environment Variable. If you use the default setting, you can use it without any modification. In case of changing the setting value of console to use, change the setting value to either file or console\file and then proceed.

Environment NameValue
LOG_OUTPUT_TYPEfile or console - Check the Firewall

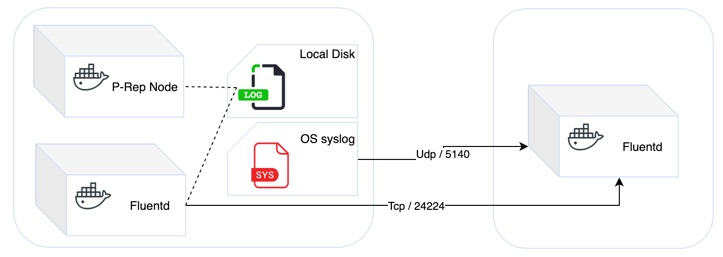

The following port open is required from the agent to the server. Udp port open is also required for syslog collection.
SourceDestinationPortDescription
P-Rep Node Server IPCentral log server IPTCP / 24224required port on transfer to data
UDP / 5140option
  • Installation
    To configure the collection server, Fluentd with Agent role and server role is required. Each node requires Agent role of Fluentd distributed and log file will be delivered to Fluentd server through the agent. Although it is possible to install RPM / DEB package on the server for agent installation, it is difficult to maintain such a plugin management/deployment/installation.
  • docker-compose-fluent.yml for Agent
    Docker-Compose information is same as below when setting agent, and some modifications are required when creating a file.

    1. P-Rep node path needed (line number 9) : ./data/:/loopchain/log
    2. Fluent log and buffer file path needed (n10) : ./fluent/log:/fluentd/log
    3. Fluent central log collection server needed (n12) : LOG_SERVER_IP: 1.1.1.1
version: '3'
services:
   loop-logger:
      image: looploy/fluentd:20191029
      container_name: loop_logger
      restart: always
      network_mode: host
      volumes:
         - ./data/loopchain:/loopchain/log
         - ./fluent/log:/fluentd/log
      environment:
         LOG_SERVER_IP: 1.1.1.1
  • docker-compose-fluent.yml for Collection Server
    When setting the server, Docker-compose information is the same as below and some modifications are required when creating a file.

    1. Path for storing collected log files (n9) : ./fluent/log:/fluentd/log
    2. Run in Fluentd server mode (n11) : FLUENTD_MODE: server
    3. Elesticsearch Server IP Settings is required (n12) : FLUENTD_MATCH_ELA_HOST: 1.1.1.1
version: '3'
services:
   loop-logger:
      image: looploy/fluentd:20191029
      container_name: loop_logger
      restart: always
      network_mode: host
      volumes:
         - ./fluent/log:/fluentd/log
      environment:
         FLUENTD_MODE: server
         FLUENTD_MATCH_ELA_HOST: 1.1.1.1
  • Environment variable options
Environment variabledefaultDescription
FLUENTD_MATCH_ELA_HOSTElasticsearch IP Information
FLUENTD_MATCH_ELA_PORT9200Elasticsearch Port Information
FLUENTD_MODEagentChange Fluent Active Mode depending on setting variable (agent / server / manual )
Fluent.conf volume mount is required for manual configuration (Docker path : /fluentd/etc/fluent.conf)
FLUENTD_SYSTEM_WORKERS4system worker variable in server mode
LOG_SERVER_IPFluentd Central Collection Server IP Information
LOG_SERVER_PORT24224Fluentd Central Collection Server Port Information
SYSLOG_SERVER_PORT5140UDP Port information used for Syslog Collection
